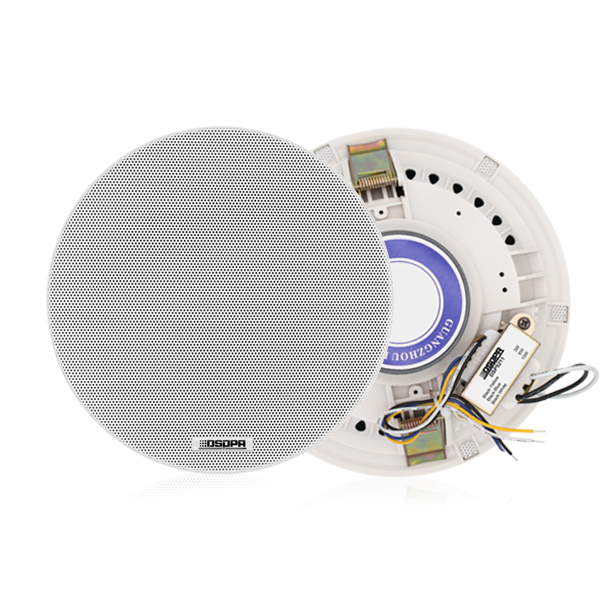

DSPPA DSP521110W 6.5" Coaxial Frameless Ceiling Speaker
⚡ Engineer replies in ~2 hrsRequest price
Home › Products › DSPPA DSP5211
DSPPA DSP5211
DSPPACoaxial Ceiling Speaker

DSPPA DSP5211

10W 6.5" Coaxial Frameless Ceiling Speaker
🛡️ The outcome: even, natural sound across the whole ceiling — no hotspots, no dead zones, no visual clutter.
10W
RMS Power
3W / 6W / 10W
100V Taps
6.5" + 0.75" Coaxial
Drivers
Ideal for
CorporateHotelGovernmentEducation
Request QuotationCall +977 9762109538
💬 We quote per site after free sizing. Typical reply ~2 hours.
✓
Genuine Product
Authorised dealer
✓
Manufacturer Warranty
Genuine, backed
✓
Expert Support
Local AV engineers
✓
All-Nepal Delivery
All 77 districts
Plan it in 20 seconds

How many will I need?

Tell us the space and we'll estimate speaker quantity and amplifier power for even coverage.

1 · Space type

Floor area600 m²
Ceiling heightMedium

Indicative coverage — final layout confirmed on survey.

Recommended
~30 speakers
for even, intelligible coverage
600 m²
Coverage
30
Speakers
~180W
Amp power
4
Zones
medium office space, 600 m².
Quote this exact build →Pricing & a BOQ in ~2 hours
Integration

How it connects

The speaker sits on an amplified line. Here is what drives it and what it pairs with across the zone.

Grey boxes are products we supply — hover to see what to pair.
LineAudioControl100VLevelZoneDSPPA DSP521170/100V line speakerDaisy-chained on the zoneMixer AmplifierDrives the 100V lineAV Nepal supplies →Audio SourceMic, BGM, mediaAV Nepal supplies →Zone ControlVolume / pagingMore SpeakersSame 100V lineAV Nepal supplies →Volume AttenuatorPer-room levelAV Nepal supplies →Next ZoneSeparate line
ConnectionSignal pathThis product
💡 Each grey box links to the matching product — build the whole zone from here.
Ready-made starting points

Popular packs

Office / meeting
BGM + speech
  • •Ceiling speakers
  • •Mixer amplifier
  • •Mic + BGM source
Get this pack quoted →
Retail / lobby
Zoned BGM
  • •Ceiling speakers, zoned
  • •Matrix amplifier
  • •Per-zone level
Get this pack quoted →
Corridors
Coverage
  • •Evenly spaced ceilings
  • •100V line
  • •Paging override
Get this pack quoted →
Why buy from us

You're not buying a box — you're buying a working system

1
Free site survey
We visit and measure your space.
2
System design + BOQ
Specified to your requirements.
3
Supply, genuine
Authorised stock, full warranty.
4
Professional install
Commissioned and tested.
5
AMC & training
Spares, service, staff handover.
Why this system

Key features

Coaxial 2-Way Design
6.5" woofer + 0.75" tweeter delivers extended high-frequency clarity versus single-driver designs.
10W with 3-Tap Transformer
100V taps at 3W, 6W and 10W allow fine-tuning of zone volume without a controller.
93dB Sensitivity
High sensitivity means less amplifier power is needed — reduces system cost and heat.
Technical data

Specifications

Output
RMS Power10WKEY
100V Taps3W / 6W / 10WKEY
Audio
Drivers6.5" + 0.75" CoaxialKEY
Sensitivity93dB (1W/1m)
Max SPL103±2dB
Frequency90Hz–18kHz
Physical
Cut-outØ165–170mm
📄Datasheet
Full specs & wiring — sent in 24h📘Product brochure
Series overview🎧Talk to an engineer
Design & compatibility
Before you ask

Common questions

How many speakers will I need?
It depends on area, ceiling height and noise. The builder above gives a starting quantity; we confirm the exact layout on a free site survey.
100V line or low-impedance?
For most distributed installs we use 100V lines so many speakers run on one amplifier over long cable runs. We spec the right amplifier to match.
Do you install and tune it?
Yes — supply, install, level-balancing and handover, with local service and spares.

Planning a project?

Share your floor plan or BOQ — our engineers size it and send one quotation with installation cost.

Request a system quote →
💬
