DSPPA PAVA95008-Zone 500W EN54 Voice Evacuation PA System
Price on Request · ⚡ Engineer replies in ~2 hrsPrice on Request
Home › Products › DSPPA PAVA9500
DSPPA PAVA9500
Best SellerDSPPAIntegrated Voice Evacuation

DSPPA PAVA9500

8-Zone 500W EN54 Voice Evacuation PA System
🛡️ The outcome: everyone hears a clear evacuation message in every zone — and your building passes fire inspection the first time.
8
Zones to 160
500W+500
Main + Backup
EN54-16
Certified
800m
CAN reach
Ideal for
GovernmentHospitalHotelEducationTransportation
💬 We quote per site after free sizing. Typical reply ~2 hours.
✓
EN54 Life-Safety
Certified for evacuation
✓
2-Year Warranty
Genuine, backed locally
✓
Authorised Dealer
Not grey market
✓
We Design & Install
Local AV engineers
Plan it in 20 seconds

Build your system

Don't know how many zones or speakers your building needs? Tell us the basics and we'll propose a starting configuration, then quote it exactly.

1 · Building type

Floors / blocks6
Approx. area per floorMedium

Indicative sizing to start the conversation — we confirm exact zones and speaker counts on a free site survey.

Recommended
DSPPA PAVA9500
8-zone flagship with dual-amp failover
18
Zones needed
~108
100V speakers (approx.)
2x
PAVA9500E expanders
Yes
Battery backup
For 6 hospital floors, medium area.
Quote this exact build →Pricing & a BOQ in ~2 hours
Integration

How it connects

The host sits at the centre of a complete voice-evacuation system. Here's what plugs in — and the products we'd pair with it. Press play to trace an emergency broadcast.

Grey boxes are products we supply — hover to see what to pair.
Priority micDry-contact triggerAUX / BGM in100V lineCAN busDual RJ45DSPPA PAVA9500500W + 500W · EN54-168 zones · dual-amp failoverPaging MicrophoneZone / all-call pagingAV Nepal supplies →Fire Alarm PanelDry-contact evac triggerBGM / AUX SourceMusic, chimes, announceAV Nepal supplies →Speaker Zones 1-8100V supervised linesAV Nepal supplies →Expansion (PAVA9500E)Grow 8 to 160 zonesAV Nepal supplies →Monitoring PCFault & line supervision
Wired connectionEmergency broadcast pathThis product
💡 Every grey "AV Nepal supplies" box links to the matching product — the diagram doubles as a system builder and cross-sells the kit around the host.
Ready-made starting points

Popular packs

Hospital Pack
Multi-floor · life-safety
  • •PAVA9500 host + 1 expander
  • •~90 ceiling speakers, 12 zones
  • •2 paging mics + battery backup
Get this pack quoted →
Hotel Pack
Guest floors + BGM
  • •PAVA9500 host, 8 zones
  • •Ceiling + column speakers
  • •BGM source + reception mic
Get this pack quoted →
Campus Pack
Blocks + outdoor
  • •PAVA9500 host + 2 expanders
  • •Horn + ceiling speakers
  • •Bell scheduling + all-call mic
Get this pack quoted →
Why buy from us

You're not buying a box — you're buying a working system

1
Free site survey
We visit, measure zones and noise.
2
System design + BOQ
Sized to code.
3
Supply, genuine
Authorised, full warranty.
4
Licensed install
Commissioned, EN54 tested.
5
AMC & training
Spares, service, handover.
Choosing a model

Where it sits in the range

PAVA4600
Entry · small sites
Fewer zones
Clinics, small offices
Single-block coverage
You're viewing
PAVA9500
Flagship · large sites
8 zones to 160
Hospitals, government
Dual-amp failover, EN54-16

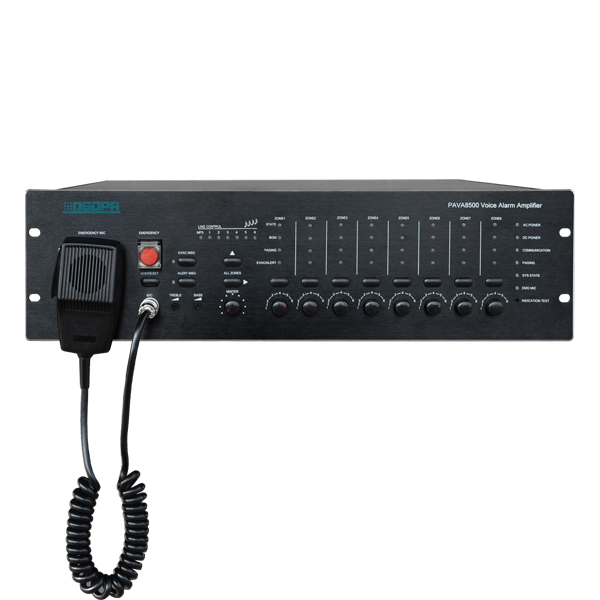

PAVA8500
Mid · medium sites
Mid zone count
Hotels, mid offices
Single amplifier
Not sure which fits? Send us the floor plan — we'll recommend the right model.
Why this system

Key features

EN54-16 Certified
Fully compliant with European fire alarm and voice evacuation standards — accepted for life-safety installations.
8 Zones, 500W Main + 500W Backup
Built-in main and standby amplifier with automatic fault-switching ensures uninterrupted emergency broadcast.
Expandable to 160 Zones
Cascade expansion amplifiers (PAVA9500E) over CAN bus — covers the largest complexes from a single host.
Speaker Line Detection
Continuous open-circuit and short-circuit monitoring on all speaker lines with fault reporting.
Priority Paging
Live microphone and emergency signals override background music across selected or all zones instantly.
Technical data

Specifications

Output
Zones8 (expandable to 160)KEY
Amplifier Power500W Main + 500W BackupKEY
Speaker Output100V Bridge, AB Line
Standard
StandardEN54-16 CertifiedKEY
Input
Mic Inputs2 Balanced
AUX Inputs4 Analog
Connectivity
TransmissionCAN Bus, up to 800m
NetworkDual RJ45
Before you ask

Common questions

Will this pass EN54 / fire inspection in Nepal?
Yes — EN54-16 certified. We design zones and speaker lines to code and commission the system so it passes inspection; done across government and hospital sites.
How many speakers / zones do I need?
Depends on floor area, ceiling height and noise. Use the builder above for a starting estimate, or send a floor plan for an exact BOQ.
What is the lead time?
Common configs are in stock and ship nationwide. Larger multi-zone builds are supplied and installed within a few weeks after survey sign-off.
Can it grow later?
Yes — cascade PAVA9500E expanders over CAN bus to grow from 8 up to 160 zones without replacing the host.
Do you install and service it?
Yes. Free survey, licensed install, commissioning, AMC, spare parts and staff training — all local.

Planning a project?

Share your floor plan or BOQ — our engineers size it and send one quotation with installation cost.

Request a system quote →
